# BiBoard V0

### BiBoard V0 USB Driver to access the serial port

When you use a **USB Type-C**  interface data cable to upload the firmware for BiBoard or control the robot via the [**Petoi Desktop App**](https://docs.petoi.com/desktop-app/introduction), please download the driver as below:

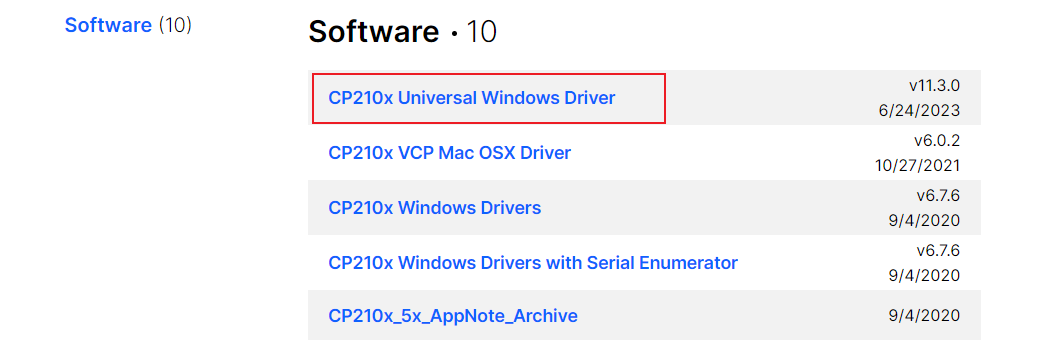

{% embed url="<https://www.silabs.com/developer-tools/usb-to-uart-bridge-vcp-drivers?tab=downloads>" %}

For example, for Windows:

<figure><img src="https://content.gitbook.com/content/XLpFdG7mubqEHWylLK3w/blobs/QTZ07cg9euXwJJ66YQyn/image.png" alt=""><figcaption></figcaption></figure>

#### Mac

You can download the Mac version and run the \*dmg file to install it. During the installation, you need to allow the permission settings.&#x20;

#### Win

For Windows, the installation steps are as follows:

<figure><img src="https://content.gitbook.com/content/XLpFdG7mubqEHWylLK3w/blobs/hKxt8JHNEo9WfvQqN1Y1/CP2102driver.png" alt=""><figcaption></figcaption></figure>

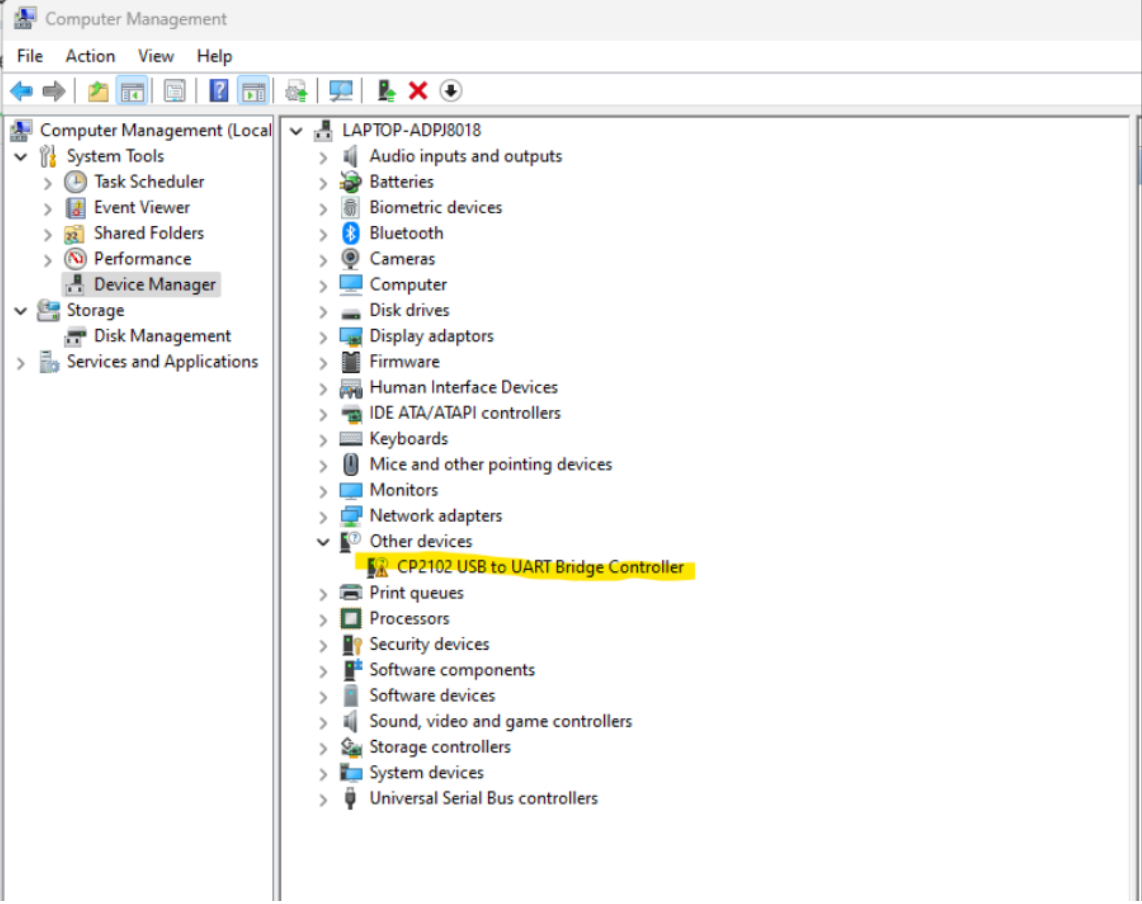

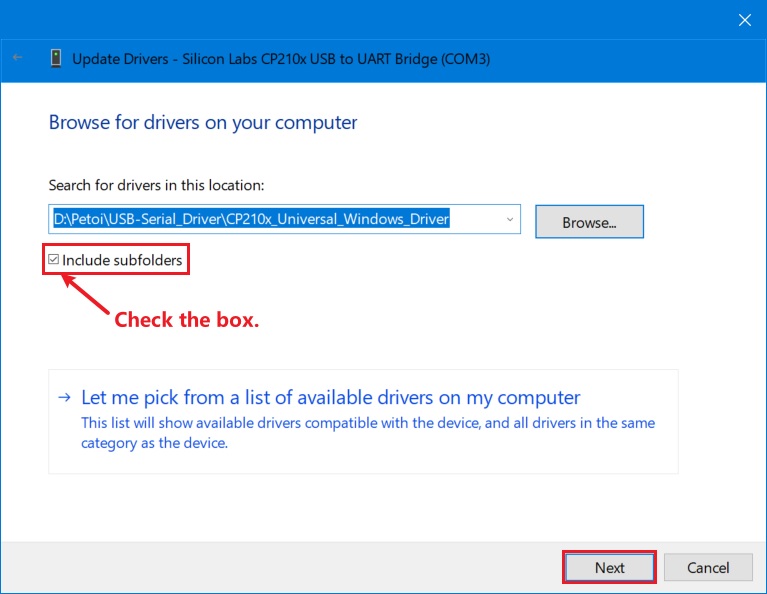

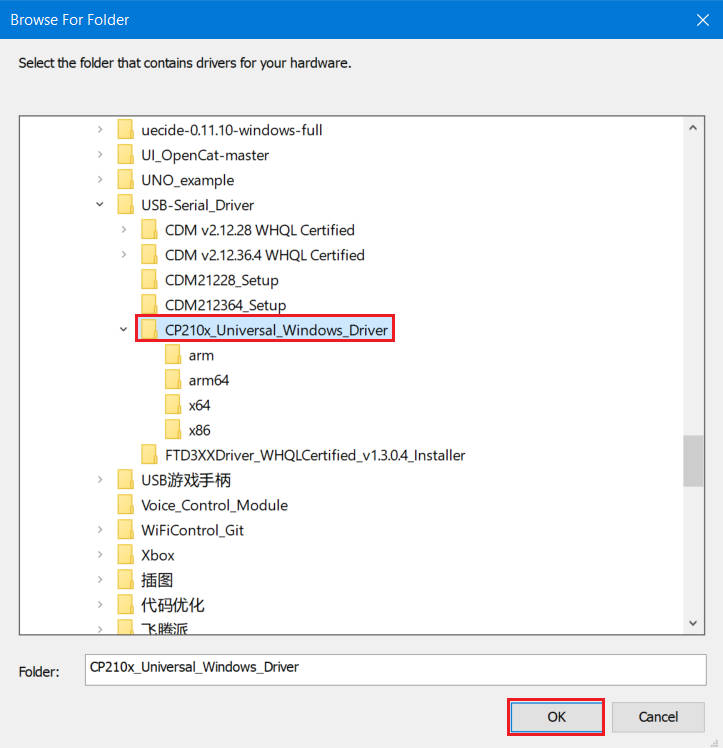

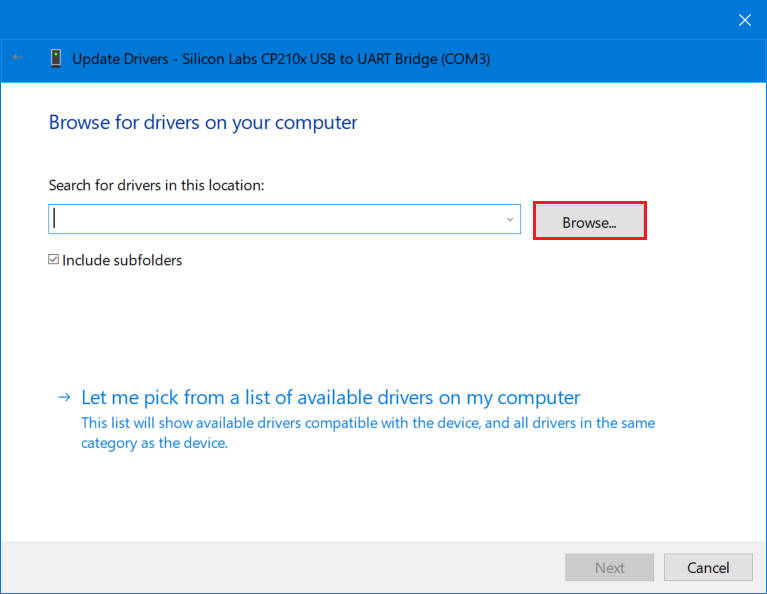

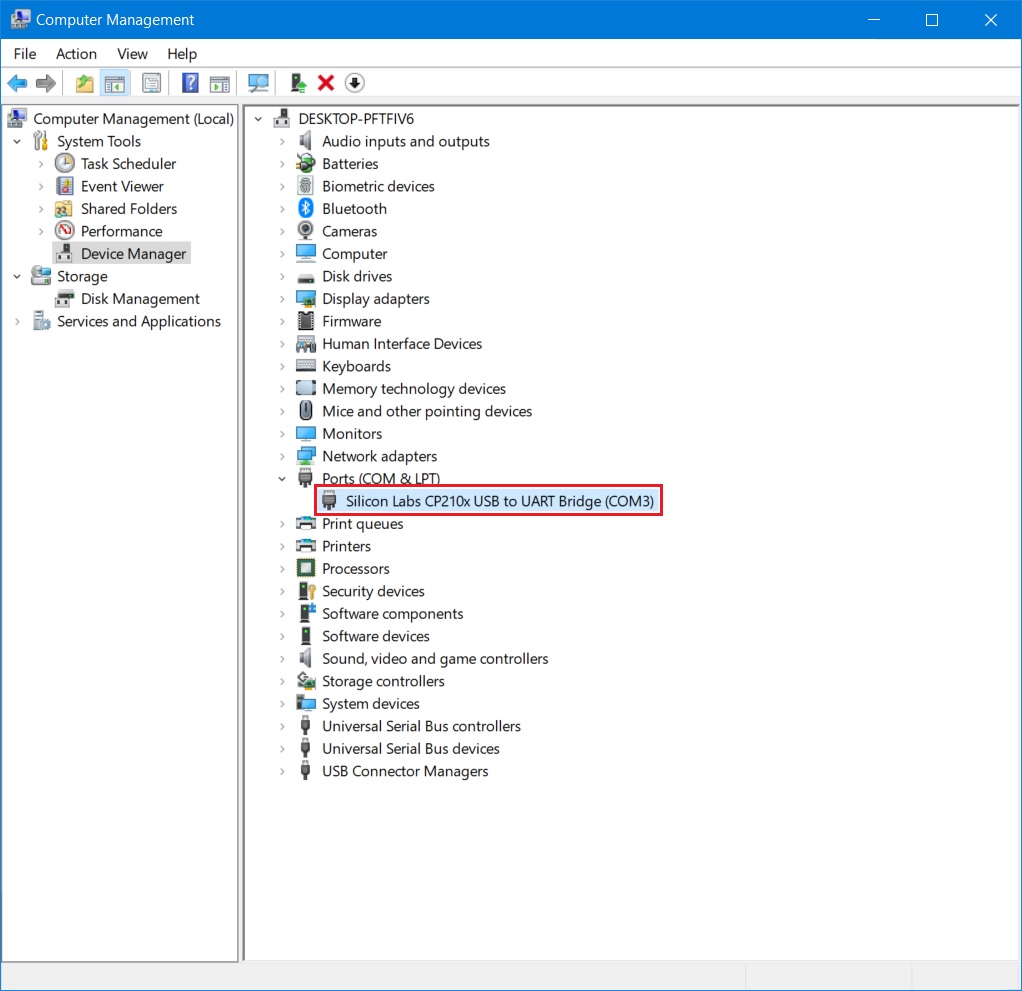

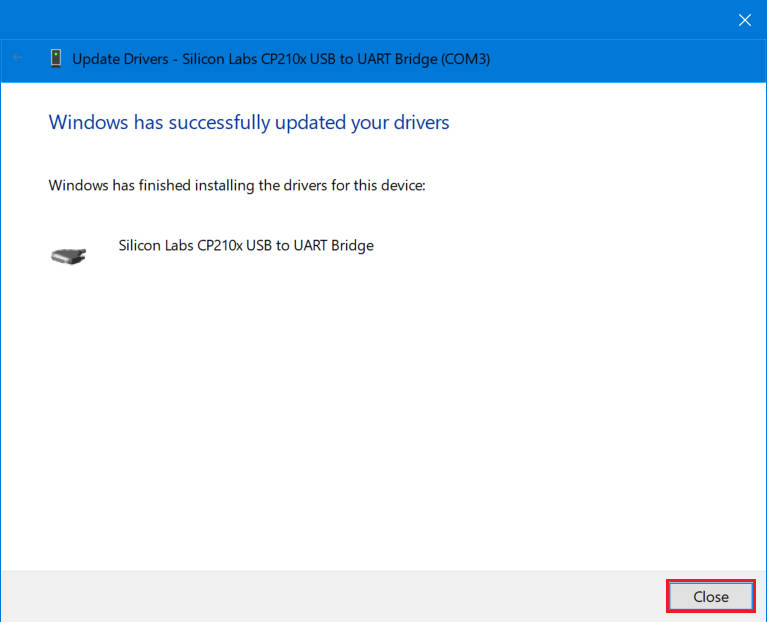

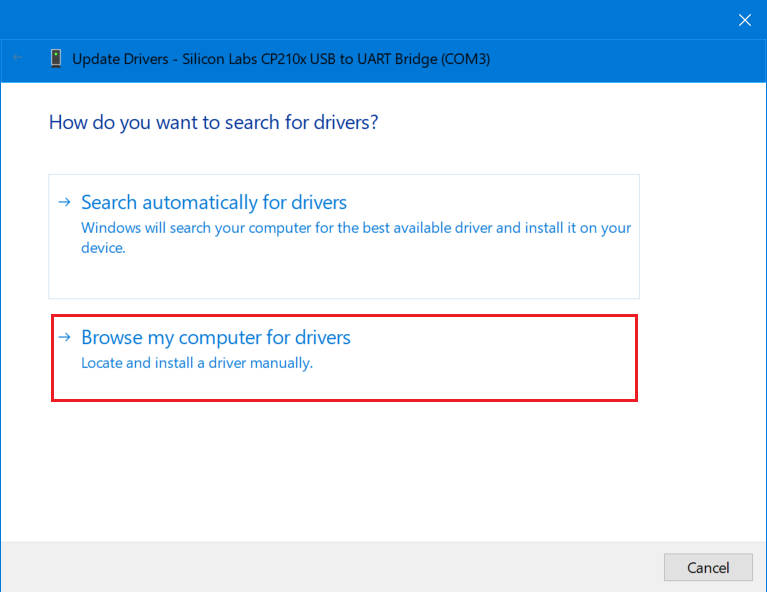

In the **Device Manager**, if you open the Other devices list, you may see a CP210X device with a triangle exclamation sign. Right-click it to find the "**update driver**" option, then select the unziped folder of your downloaded driver to install.

<figure><img src="https://content.gitbook.com/content/XLpFdG7mubqEHWylLK3w/blobs/cakn2UWiVNNVOMucyATp/update_driver02.jpg" alt=""><figcaption></figcaption></figure>

<figure><img src="https://content.gitbook.com/content/XLpFdG7mubqEHWylLK3w/blobs/RqfLrrTaRSGHmOyPdWfY/update_driver03.jpg" alt=""><figcaption></figcaption></figure>

<figure><img src="https://content.gitbook.com/content/XLpFdG7mubqEHWylLK3w/blobs/2GCt3UDNumM2wxXo9OOP/update_driver04.jpg" alt=""><figcaption></figcaption></figure>

<figure><img src="https://content.gitbook.com/content/XLpFdG7mubqEHWylLK3w/blobs/rr85OZHRCo4NZqebKtMP/update_driver05.jpg" alt=""><figcaption></figcaption></figure>

<figure><img src="https://content.gitbook.com/content/XLpFdG7mubqEHWylLK3w/blobs/YjgOZktKaZZ8x3G4Y7FZ/update_driver06.jpg" alt=""><figcaption></figcaption></figure>

<figure><img src="https://content.gitbook.com/content/XLpFdG7mubqEHWylLK3w/blobs/FGgwuSUUABkcRegsyly1/update_driver07.jpg" alt=""><figcaption></figcaption></figure>


---
