Connect to NyBoard

Make sure you have uploaded the OpenCat Main function firmware before calibrating.

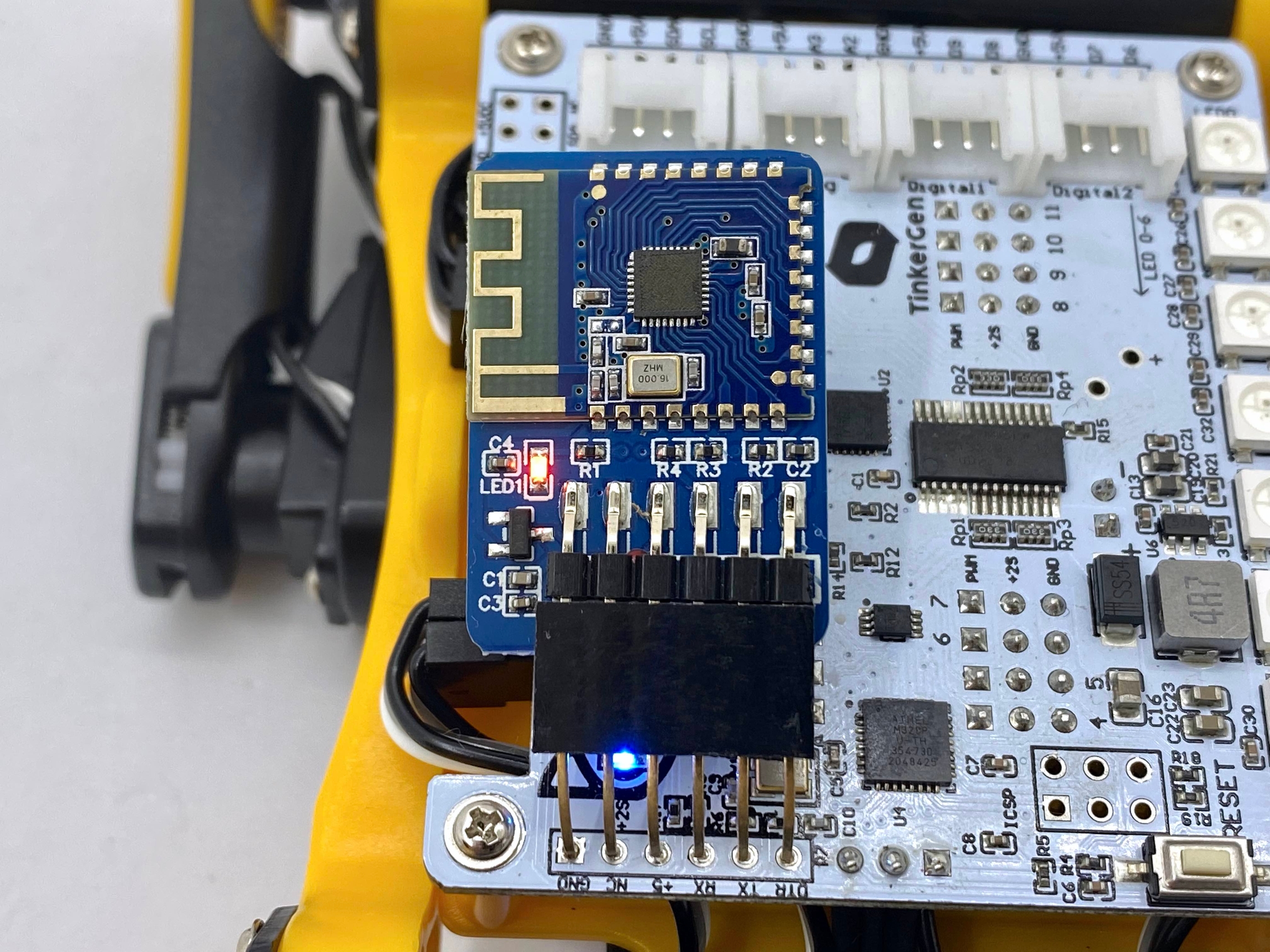

You need to plug the Bluetooth dongle into the 6-pin socket on the NyBoard. Pay attention to the Bluetooth dongle's pin order. Long-press the button on the battery to turn on the robot's power.

If the buzzer beeps repetitively after bootup or during use, the battery is low. Please charge it in time. The charging port is on one end of the battery.

The LED on the Bluetooth dongle should blink, waiting for a connection.

If Bluetooth is connected, the LED will light steadily.
